What accuracy can I expect?

Typical topo accuracy is +/- 1-3 cm horizontal and +/- 2-4 cm vertical with good control and clear surfaces. As-built checks on critical features can be tighter using total station and scan control.

Can you match our CAD standards?

Yes - we deliver layered DWG/DXF with your layers, blocks, and linetypes, plus TINs/contours and feature-coded points. A README documents projection and units.

Can you combine conventional survey with LiDAR/UAV?

Yes - we integrate GNSS/total station observations with terrestrial, mobile, and UAV LiDAR to maximize coverage, efficiency, and accuracy.

Topographic & As-Built Surveys

Overview

Convex Geomatics Ltd. delivers professional topographic surveys and as-built surveys that integrate seamlessly with engineering and construction workflows. We blend GNSS/robotic total stations, terrestrial/mobile/UAV LiDAR, and targeted conventional shots to produce authoritative basemaps, surfaces, and feature linework aligned to your CAD/GIS standards and project datum.

From urban infill sites and transportation corridors to industrial facilities and municipal works, our Calgary-based team provides engineering-grade mapping with clear documentation and transparent QA/QC—ready for design, tender, field layout, and construction close-out.

Deep as-built expertise: Extensive record of acceptance surveys on bridges, plants, municipal utilities, and transportation structures—delivered on tight timelines and in live facilities.
Tight-tolerance verification: Anchor bolts, embedded plates, rails, pipe inverts, slabs, and finished grades checked against design with documented control and independent check shots.
Methods matched to complexity: Robotic total stations for precision stake/measure and SLAM for dense geometry, reflectorless shots where access is constrained.
Defensible deliverables: Layered DWG/DXF built to your templates, comparison heatmaps and deviation tables, photo-referenced notes, and a clear QA/QC sign-off packet.
Challenging environments: Traffic control, confined-space procedures, night work, shutdown coordination, and GNSS-challenged sites handled safely and efficiently.

Typical As-Built Tolerance

±5–15 mm*

Verification Methods

Robotic TS; TLS/SLAM

Deliverables

Layered DWG/DXF; deviation heatmaps/tables

Control & Checks

Benchmarks, scan targets, independent shots

*Per project specification, access constraints, and control quality.

Deliverables

CAD Packages

Layered DWG/DXF with linework, blocks, and annotation
TIN surfaces, breaklines, and contours (0.25–1.0 m)
Title blocks, legends, and sheet sets (optional)

Surfaces & Points

DTM/DSM rasters and hillshade (GeoTIFF)
Classified point clouds (LAS/LAZ)
Feature-coded survey points (CSV/SHP)

Formats

DWG/DXF SHP/GDB LAS/LAZ GeoTIFF CSV PDF maps

Workflow

Scope & standards (layers, symbology, tolerances, datums)
Control (GNSS/total station, benchmarks, check shots)
Acquisition (terrestrial/UAV/mobile LiDAR + conventional shots)
Processing (classification, breaklines, surface modeling)
Compilation (feature coding, linework, attribution)
Packaging (CAD/GIS deliverables and map sheets)
QA/QC (residuals, RMSE, coverage, completeness)

Features Mapped

Surface & Grading

Ground, pavement, curbs/gutters, sidewalks
Breaklines at edges and grade changes
Contours and spot elevations

Utilities & Sites

Valves, manholes, inlets, hydrants, poles
Fences, walls, signs, guardrails, lighting
Building footprints and key as-built details

Structures

Headwalls, culverts, bridges/abutments
Foundations, slabs, pads, anchors
As-built alignment and geometry checks

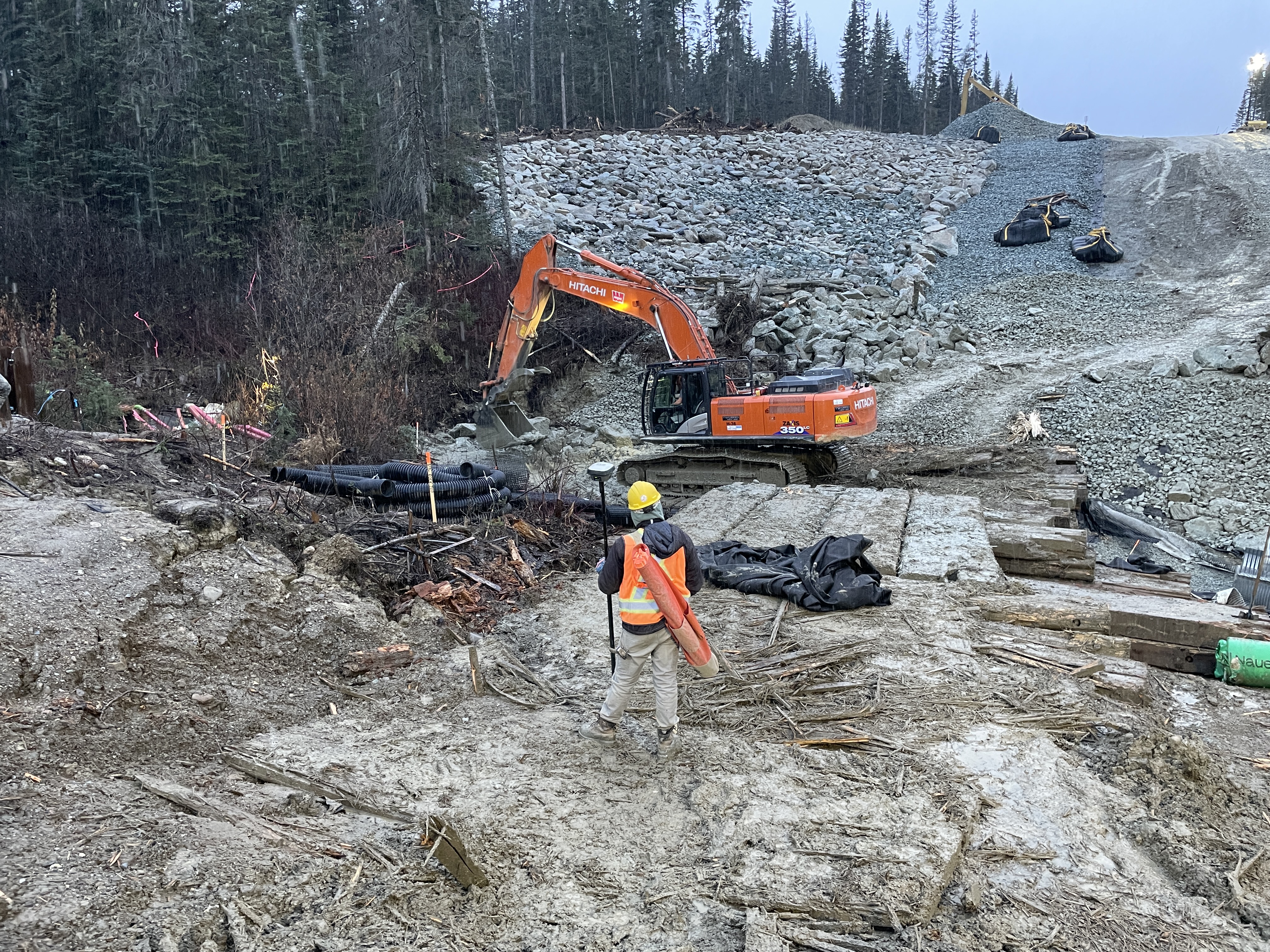

As-Built Services

Acceptance surveys on bridges, plants, and municipal works
Critical features: bolts, embeds, rails, inverts, slabs, grades
Verification: robotic TS with TLS/SLAM scan control
Tolerance checks & independent QA; deviation heatmaps/tables
Deliverables: layered DWG/DXF with redlines & photo docs

Technology

Survey Instrumentation

GNSS RTK/PPK, robotic total stations
Digital levels for benchmarks
Reflectorless shots for inaccessible features

Scanning

Mobile LiDAR (vehicle-mounted) for corridors and roads
UAV LiDAR for rapid site coverage
SLAM for GNSS-challenged areas

Gallery

FAQ

Can you match our CAD/BIM standards and layers?

Yes — send your layer list, linetypes, blocks, and sheet templates. We deliver DWG/DXF aligned to your standards (feature coding, symbology, styles) plus TINs/contours as required. A README documents projection, vertical datum, units, and file structure for easy onboarding.

How do you ensure as-built accuracy on critical features?

We combine robotic total station measurements, mobile LiDAR/SLAM where helpful, and independent check shots tied to verified control. Results are summarized in a sign-off pack with control diagrams, residuals/RMSE, and clear acceptance notes against specified tolerances.

Can you match our project coordinate system and vertical datum?

Yes — we work in common EPSG codes or custom site grids. We verify/establish control, apply the appropriate geoid for orthometric heights, and can deliver both ellipsoidal and orthometric elevations. All transformations, units, and benchmarks are documented in the README and QC report.
